A meter has a resistance of 1 Ω and full scale deflection current of 1 mA. To convert into an ammeter of 1 A range, the shunt resistance should be

0.001 Ω

0.01 Ω

1 Ω

1000 Ω

Correct Answer : Option (A) : 0.001 Ω

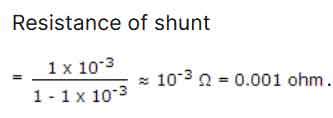

Explanation :
