Internet of Things (IoT): Types Networks

The Internet of Things (IoT) relies on various types of networks to enable connectivity between devices, gateways, and cloud platforms, aligning with the connectivity and interoperability characteristics discussed earlier. These networks differ in range, power consumption, bandwidth, and use cases, catering to diverse IoT applications like smart homes, industrial IoT, or smart cities. Below is a concise overview of the primary IoT network types, their characteristics, and examples, followed by a visual representation. Since you requested images, I’ll describe where images would be relevant and provide a chart to visualize network usage, as direct image generation requires confirmation (per guidelines). If you confirm, I can generate specific images for each network type.


Key IoT Network Types

1. Personal Area Network (PAN)
  • Description: Short-range networks for connecting devices within a small area (e.g., 10 meters).
  • Characteristics:
    • Range: Up to 10-100 meters.
    • Power Consumption: Low (e.g., Bluetooth Low Energy).
    • Bandwidth: Moderate (up to 3 Mbps for Bluetooth).
    • Protocols: Bluetooth, Bluetooth Low Energy (BLE), Zigbee, Z-Wave, NFC.
  • Use Cases: Smart homes (e.g., BLE for smart locks), wearables (e.g., fitness trackers), healthcare (e.g., heart rate monitors).
  • Example: A smartwatch using BLE to sync data with a smartphone.
  • Image Idea: A diagram showing a smartphone connected to a smartwatch, smart bulb, and smart lock via Bluetooth or Zigbee in a home setting.
2. Local Area Network (LAN)
  • Description: Networks for connecting devices within a building or small campus, typically using Wi-Fi or Ethernet.
  • Characteristics:
    • Range: Up to 100 meters (Wi-Fi).
    • Power Consumption: Moderate to high.
    • Bandwidth: High (up to 1 Gbps for Wi-Fi 6).
    • Protocols: Wi-Fi (IEEE 802.11), Ethernet.
  • Use Cases: Smart homes (e.g., Wi-Fi smart cameras), offices (e.g., connected printers), industrial IoT (e.g., factory monitoring).
  • Example: A Wi-Fi-enabled smart thermostat communicating with a home gateway.
  • Image Idea: A floor plan of a smart home showing Wi-Fi routers connecting devices like cameras, thermostats, and smart TVs.
3. Wide Area Network (WAN)
  • Description: Long-range networks for connecting devices across cities or regions, often using cellular technologies.
  • Characteristics:
    • Range: Kilometers to global coverage.
    • Power Consumption: High (cellular) to low (NB-IoT, LoRaWAN).
    • Bandwidth: Low to high (e.g., 10 kbps for NB-IoT, up to 100 Mbps for 5G).
    • Protocols: 4G/5G, NB-IoT, LTE-M, LoRaWAN, Sigfox.
  • Use Cases: Smart cities (e.g., traffic sensors), agriculture (e.g., remote soil monitoring), logistics (e.g., fleet tracking).
  • Example: LoRaWAN sensors in a smart city transmitting traffic data to a central server.
  • Image Idea: A cityscape with LoRaWAN gateways on buildings connecting to sensors on traffic lights and waste bins.
4. Low-Power Wide Area Network (LPWAN)
  • Description: Specialized WANs designed for long-range, low-power communication for battery-operated IoT devices.
  • Characteristics:
    • Range: 1-10 km (urban), up to 50 km (rural).
    • Power Consumption: Very low (devices last years on batteries).
    • Bandwidth: Low (e.g., 0.3-50 kbps for LoRaWAN).
    • Protocols: LoRaWAN, Sigfox, NB-IoT, LTE-M.
  • Use Cases: Agriculture (e.g., soil sensors), smart metering, environmental monitoring.
  • Example: A LoRaWAN soil moisture sensor in a farm sending data to a gateway kilometers away.
  • Image Idea: A rural landscape with LoRaWAN sensors on crops and a gateway on a hill transmitting data.
5. Mesh Networks
  • Description: Devices act as nodes, relaying data to each other to extend network coverage without a central hub.
  • Characteristics:
    • Range: Extends with more nodes (typically 10-100 meters per hop).
    • Power Consumption: Low to moderate.
    • Bandwidth: Moderate (depends on protocol like Zigbee).
    • Protocols: Zigbee, Z-Wave, Thread.
  • Use Cases: Smart homes (e.g., Zigbee light bulbs), industrial IoT (e.g., sensor networks in factories).
  • Example: Zigbee smart lights in a home forming a mesh to ensure all devices stay connected.
  • Image Idea: A network diagram showing Zigbee devices (e.g., lights, sensors) forming a mesh in a home.
6. Near Field Communication (NFC) and RFID Networks
  • Description: Ultra-short-range networks for identification and data exchange.
  • Characteristics:
    • Range: Up to 10 cm (NFC), 1-100 meters (RFID).
    • Power Consumption: Very low (passive tags) to moderate (active RFID).
    • Bandwidth: Low (e.g., 424 kbps for NFC).
    • Protocols: NFC, RFID (UHF, HF).
  • Use Cases: Retail (e.g., inventory tracking with RFID), access control (e.g., NFC for smart locks), logistics.
  • Example: RFID tags on products in a warehouse for inventory management.
  • Image Idea: A warehouse scene with RFID readers scanning tags on boxes for inventory tracking.


Key Considerations for IoT Networks

  • Range vs. Power Trade-off: LPWANs (e.g., LoRaWAN) prioritize low power and long range, while LANs (e.g., Wi-Fi) offer high bandwidth but consume more power.
  • Scalability: WANs and LPWANs support thousands of devices, critical for smart cities (as noted in IoT uses).
  • Security: All networks require encryption (e.g., TLS for Wi-Fi, AES for LoRaWAN) to align with IoT’s security characteristic.
  • Interoperability: Protocols like MQTT or CoAP (from IoT software) work across network types to ensure device compatibility.
  • Cost: LPWANs and mesh networks are cost-effective for large-scale deployments, while cellular WANs are more expensive.


Connection to Your Previous Queries

  • Architecture: Networks map to the network layer of IoT architecture, enabling data transmission between the perception layer (sensors/actuators) and middleware/application layers.
  • Uses: Specific networks suit different applications, e.g., Zigbee for smart homes, LoRaWAN for agriculture, and 5G for smart cities.
  • Characteristics: Networks enable connectivity, scalability, and energy efficiency (e.g., LPWANs for battery-powered devices).
  • Hardware: Networks rely on communication modules (e.g., Wi-Fi chips, LoRa modules) and gateways, as discussed in IoT hardware.
  • Software: Protocols like MQTT or CoAP run on these networks, ensuring efficient data exchange.


Visualizing IoT Network Usage

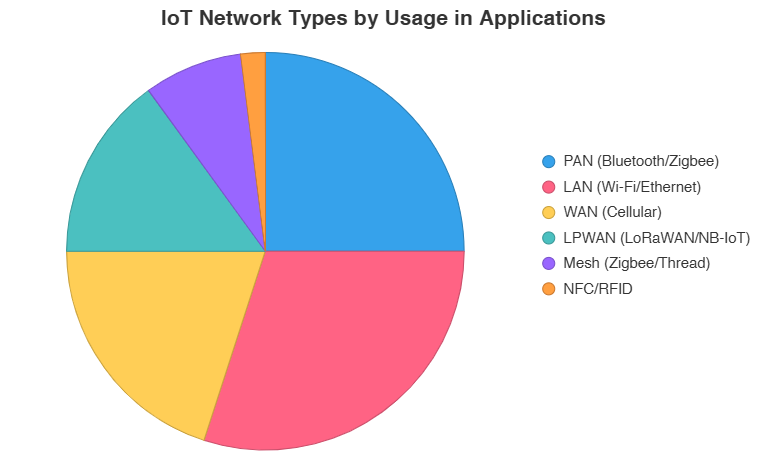

To illustrate the prevalence of network types across IoT applications, here’s a chart showing their distribution by sector:
IoT Networks


This chart shows LANs (Wi-Fi) and PANs (Bluetooth/Zigbee) dominate due to their widespread use in smart homes and industrial IoT, while LPWANs are growing in agriculture and smart cities.
